Adroit Z Classic, helps programming Photo books, with varied specifications. The paper is manually placed at one end of the machine and the processed laminated prints come out from the other end. The entire process is carried out without any human intervention, Once the programming is pre-defined for each book, Adroit Z Classic carries on the entire process right from WINDOW CUTTING, HOLE PUNCHING IN V-SHAPE, DUST CLEANING, THERMAL LAMINATION. The Laminated sheets with Utter precision in entire operation feeding of the Prints and Cutting after Lamination is manual by hand. Thus, in no time, the entire stake of Photo Books is ready to be Stapled and Binded to take a V- Shape LayFlat open Photobook.
ADROIT Z Classic
ADROIT Z Classic
Adroit Z Classic automates V-Shape LayFlat photo books with manual feeding and precise lamination.
- Key Features :
- Every aspects can be pre-programmed with 7”(inch) display with windows
- Individual Temperature controller for both the Lamination Roller
- Special feeding roller ensures accurate sheets with perfect gap

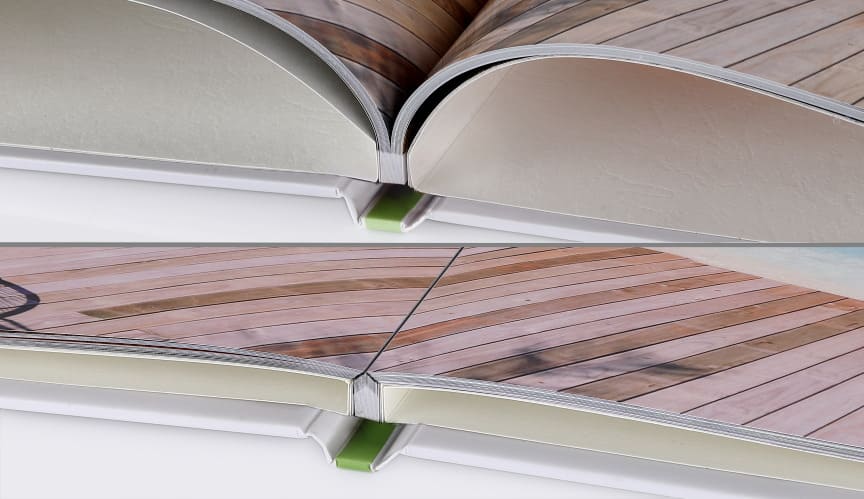

- Innovative Patented technology for V-Shape lay flat binding
- Manual (By Hand)
Reliability is the core of everything we do.

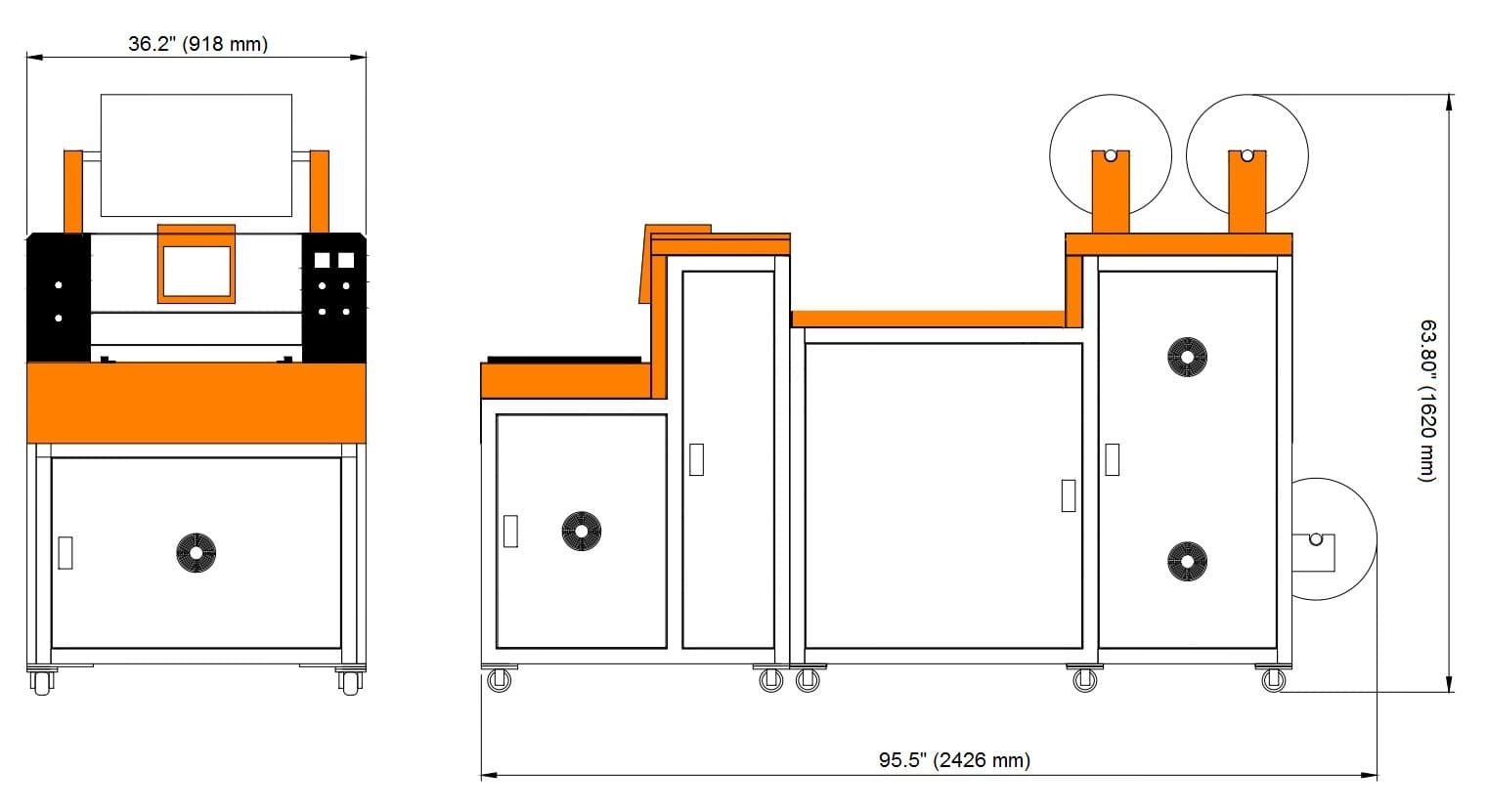

MACHINE DIMENSION
965 x 2438 x 1575 ( mm ) 19” x 19”
POWER SUPPLY
220V AC ( 50 Hz )
POWER CONSUMPTION
6000 WATTS
SPEED
500 SHEETS / HOUR
MAX PAPER SIZE
482 mm x 482 mm | 19” x 19” (INCH)
MIN PAPER SIZE
317.5 mm x 381 mm | 12.5” x 15” (INCH)
PAPER THICKNESS
MIN 150 gsm – MAX 300 gsm
SYNTHETIC PAPER THICKNESS
MIN 0.125 mm – MAX 0.175 mm
AIR COMPRESSOR
PNEUMATIC CONNECTION REQUIRED
We don't just manufacture machines, but evolve innovations.
