Manual feeding supports sizes from visit cards up to 330 × 650 mm and paper thickness from 70 to 380 GSM. Features include precise first and last creasing up to 5 mm from the edge, optional perforating and scoring blades, skew adjustment, auto crease-bar release during paper jams, infinite crease depth control, and LCD panel operation.
CRP 33m
CRP 33m
Manual creasing supports 70–380 gsm sheets, precise edge creases, skew control, and LCD operation.
- Key Features :
- Manual Feeding
- Sizes from visit card to 330 mm x 650 mm
- From 70 gsm to 380 gsm card
- First and last crease to 5 mm from edge
- Optional linear perforating blade and scoring blade.
- Skew adjustment.
- Optional linear perforating blade and scoring blade.
- Crease bar auto release when paper jammed.
- Can creasing on laminated / UV coated paper.
Reliability is the core of everything we do.

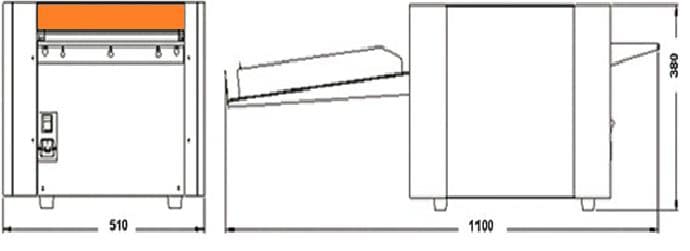

MACHINE DIMENSION
1100 x 510 x 380 ( mm )
POWER
220V AC ( 50HZ )
POWER CONSUMPTION
150 WATT
PAPER LENGTH
90 mm – 900 mm
PAPER WIDTH
50 mm – 330 mm
PAPER THICKNESS FOR CREASE
MIN 100 gsm – MAX 350 gsm
PAPER THICKNESS FOR PERFORATING
MIN 100 gsm – MAX 250 gsm
MIN CREASE GAP
CREASE : 1mm : PERFORATING : 10 mm
MIN GAP FROM LEADING EDGE TO FIRST CREASE
CREASE : 1mm : PERFORATING : 10 mm
SPEED
35 – 42 SHEETS / MIN
MAX CREASE IN SINGLE PASS
32
PROGRAM MEMORY MAX
30
