The Digitec UV Coating & Curing machine is the leading age of technology, it offers coating &
curing with utmost precision, accuracy and consistency. This machine features two coaters for
coating prints with two different chemicals simultaneously and a UV & IR chamber for thorough
curing. This machine is specially designed to meet the specific market needs and does its job
efficiently, yielding uniform coating.
This two station facility gives an added advantage to the photo book manufacturers and digital
print shops as they provide different features in a single book.
The Digitec UV Coating & Curing machine is suitable for all sorts of Offset and Digital prints like
HP Indigo, Konica Minolta, Ricoh, Canon, Xerox, Kodak, Photo papers and more.
Digitec 1502 M
Digitec 1502 M
Digitec UV coating curing machine provides uniform coating and precise curing for digital and offset prints.
- Key Features :
- Easy to switch over the chemical connection lines.
- Two separate tanks and channels for two different types of chemical.
- Easy roller changing mechanism for obtaining varied creative texture.
- Thickness control mechanism.
- Air knife to run thin paper.
Reliability is the core of everything we do.

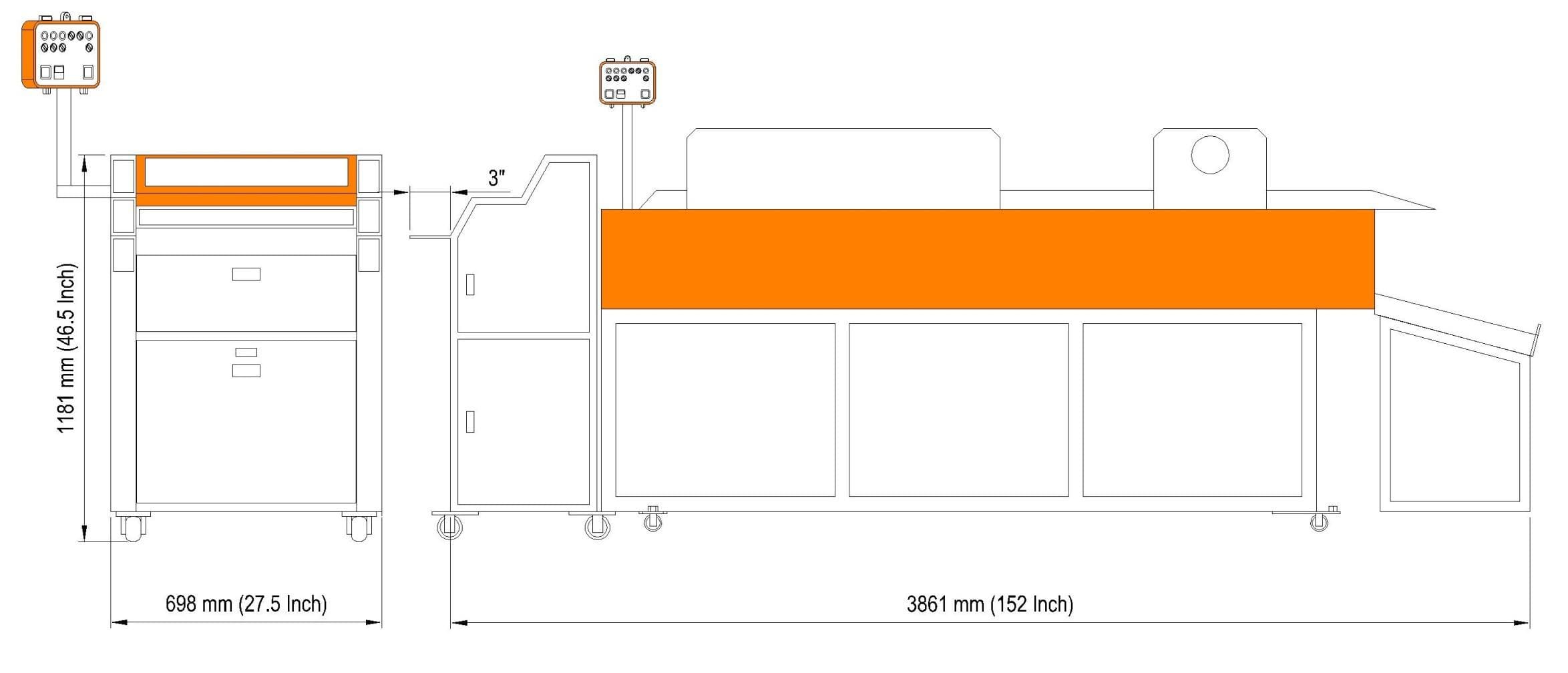

MACHINE DIMENSION
3861 x 698 x 1181 ( mm )
POWER SUPPLY
3 PH + N
POWER CONSUMPTION
6000 WATTS
SPEED
2000 SHEETS / HOUR (A3)
MAX PAPER SIZE
380 mm | 15” (INCH)
PAPER SIZE
MIN 150 gsm – MAX 300 gsm
SYNTHETIC PAPER THICKNESS
MIN 0.125 mm – MAX 0.200 mm
AIR COMPRESSOR
PNEUMATIC CONNECTION REUIRED
