The Digitec UV coating Curing machine offers coating & curing with utmost precision,
accuracy and consistency. This machine features separate coating and curing units for
coating prints with different chemicals and a UV & IR chamber for thorough curing. This
machine is specially designed to meet the specific market needs and does its job efficiently,
yielding uniform coating. The Digitec UV coating Curing machine is suitable for all sorts of
Offset and Digital prints like HP Indigo, Konica Minolta, Ricoh, Canon, Xerox, Kodak, Photo
papers and more.
Digitec 1501 M
Digitec 1501 M
Digitec UV coating curing machine provides uniform coating and precise curing for digital and offset prints.
- Key Features :
- Easy to switch over the chemical connection lines.
- Two separate tanks and channels for two different types of chemical.
- Easy roller changing mechanism for obtaining varied creative texture.
- Thickness control mechanism.
- Air knife to run thin paper.
Reliability is the core of everything we do.

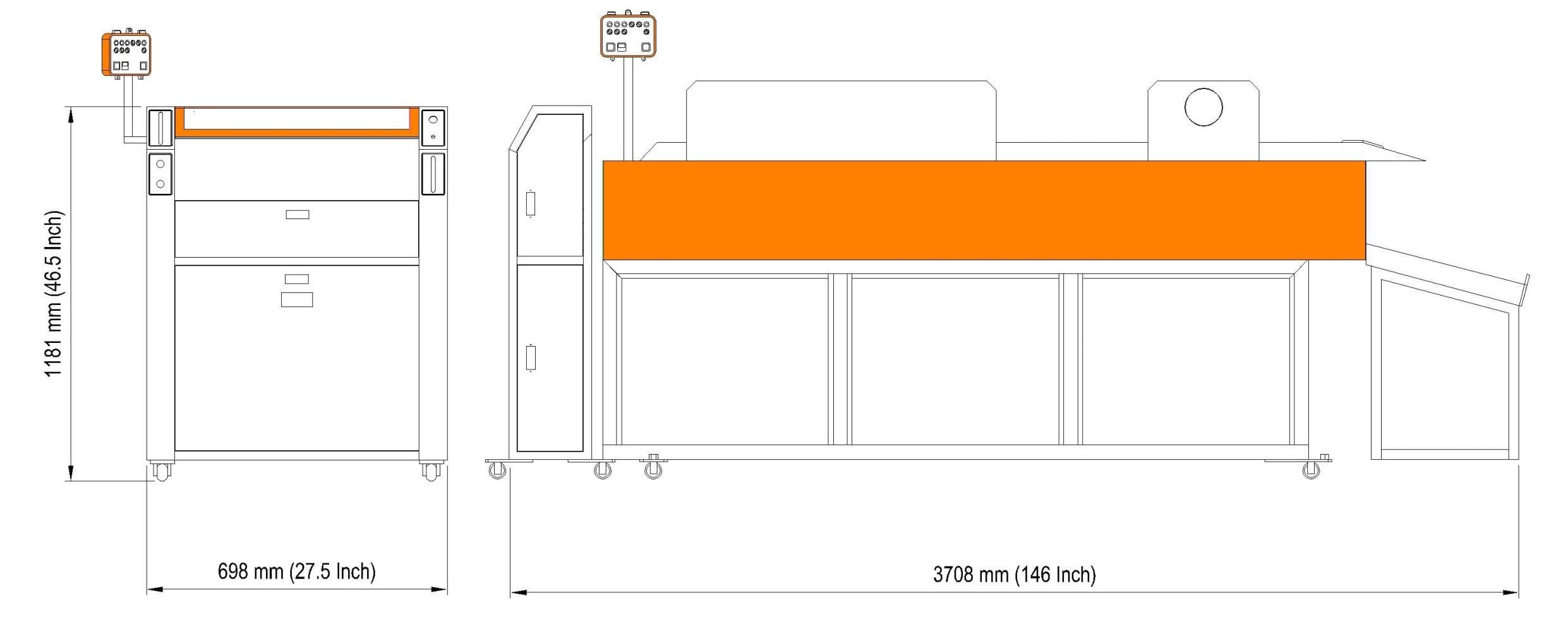

MACHINE DIMENSION
3708 x 698 x 1181 ( mm )
POWER SUPPLY
3 PH + N
POWER CONSUMPTION
6000 WATTS
SPEED
2000 SHEETS / HOUR (A3)
MAX PAPER SIZE
380 mm | 15” (INCH)
PAPER SIZE
MIN 150 gsm – MAX 300 gsm
SYNTHETIC PAPER THICKNESS
MIN 0.125 mm – MAX 0.200 mm
AIR COMPRESSOR
PNEUMATIC CONNECTION REUIRED
We don't just manufacture machines, but evolve innovations.
