Thermal Lamination LP 13 SLm is a combination of Slitting & Double Side Lamination to create a Flat Open Photo Book. You can use it either for Inline Slitting with Double Side Lamination or only for Laminating purpose of Double Side Lamination also.
THERMAL LAMINATION LP13 SLm
THERMAL LAMINATION LP13 SLm
LP 13 SLm combines slitting and double-side lamination for flat open photo books.
- Key Features :
- User friendly Keypad Control Display to operate various functions.
- Manual Feeding System
- Manual Cut After Lamination
- High Accuracy Sensor has been provided to maintain Accurate Temperature.
- Adjustable Speed – Up to 5 m/min for different papers & films
- Flexible Film Roll Cores – 1” for small, 3” for jumbo rolls
- Power-Saving Standby Mode – Reduces consumption when idle
Reliability is the core of everything we do.

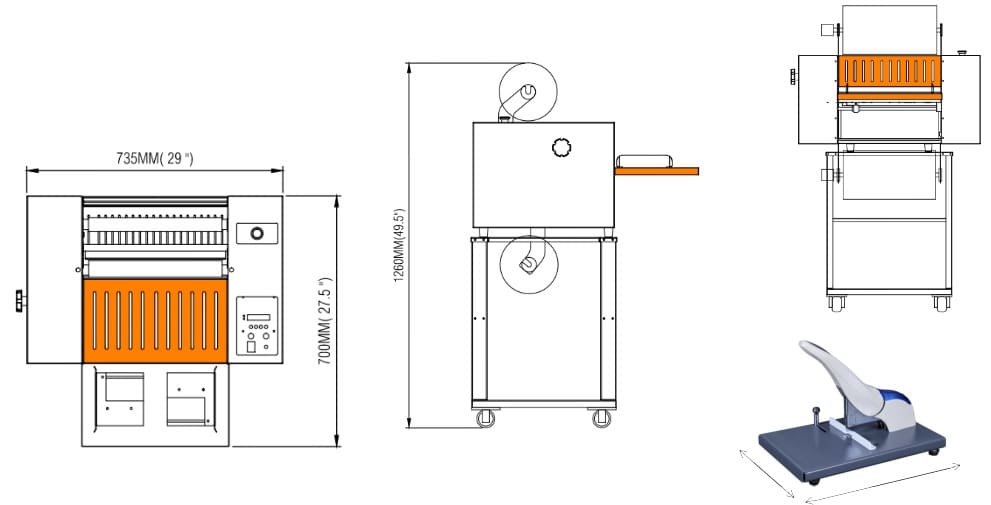

MACHINE DIMENSION 13 (inch)
735 x 700 x 1260 (mm)
POWER SUPPLY
220V AC ( 50 Hz )
POWER CONSUMPTION 13 (inch)
1800 WATTS
LAMINATION SPEED
UPTO 5 MTR / MIN
MAX PAPER SIZE
330 mm | 13” (INCH)
THICKNESS OF PAPER
170 GSM – 300 GSM
We don't just manufacture machines, but evolve innovations.
